How to Read a Battery Charger Amp Meter? – Explained

Written by Edwin Jones / Fact checked by Andrew Wright

how to read a battery charger amp meter

Proper battery charging is crucial for maintaining a battery’s health. However, incorrect charging methods can lead to overcharging or undercharging, resulting in damage and reduced lifespan.

Learning how to read a battery charger amp meter is essential to avoid this problem. This will allow you to monitor the charging process, ensuring your battery is charging safely and efficiently. In this guide, we’ll walk you through all steps to read a battery charger amp meter.

Instructions to Read the Battery Charger Amp Meter

Understanding each indicator on the car battery charger will help you do the smooth charging process and protect the battery.

So, here are easy-to-follow 10 amp battery charger instructions.

Step 1. The Switches

10-amp-battery-charger-instructions

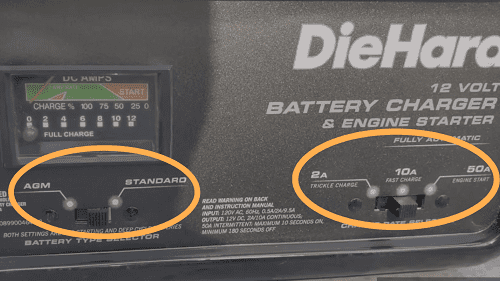

Before we get into the battery charge meters, let us talk about the switches you can see in the battery charger unit. These switches allow you to set up an appropriate charging configuration that your battery requires in order to charge it effectively.

AGM and Standard battery settings are available, as seen on the left side of the image above. AGM refers to maintenance-free, and Standard refers to regular batteries or the battery that you can refill water.

For the switch on the left side, there you can set the car battery amps charging rate. Remember that the middle 10-amp level is for fast charging, while the 2-amp charging rate setting is for trickle charging. At the same time, the highest charging rate setting is the one you can use to jumpstart the vehicle.

Step 2. Charge Rate

read-a-battery-charger-meter

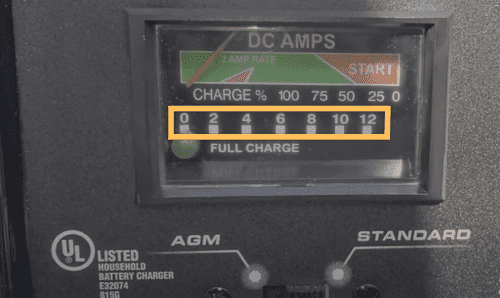

At the DC AMPS frame, there’s a line of numbers ranging from 0 to 12, which is the actual charging rate in a car battery amp meter. Basically, it will generally start at the highest amperage rating of 12 amps until the battery charger reads 0 amps when switching to the fast charge.

With the trickle charging feature of 2 amps, the needle will move from the right side of the small red triangle to the left until the green light appears. This is how the battery charger reads when fully charged.

Step 3. Actual Battery Percentage

a-battery-charger-read-when-fully-charged

A battery charger meter also includes an actual battery charge, which refers to a battery’s current state of charge. If you charge a completely empty battery, the needle will start at 0 reading up to 100% when it gets fully charged.

Aside from the battery percentage of charge, a light indicator lights up when the battery gets fully charged. These features help prevent overcharging or undercharging that may cause damage to the battery.

Step 4. Red and Green Colors in Bar

read-a-manual-battery-charger

Finally, when you read a car battery charger, pay attention to the two colors in the charger gauge.

  • Basically, both red portions represent the charging start of two charging rates: 2 amps and 12 amps.
  • And the green area shows the battery when being charged.

When the charger is set to fast charging mode, the needle starts moving from the larger red triangle to the green portion in the right-to-left direction.

Also, the needle will move from the smaller red triangle to the left when the battery becomes charged if you switch to the trickle charge.

Signs to Know When a Battery is Fully Charged on a Battery Charger

To read a battery charger meter when it is fully charged, here are some of the most common signs that may help you figure out and turn the power off:

  • Most battery chargers, even old battery chargers, have light indicators. You will notice that its lights will turn on when the battery gets full.
  • The battery charger shows 0 amps when charging at its full capacity.
  • In fast charging mode, the needle of the car battery amp meter will point to the 6 amp under the green part of the bar indicating the battery is fully charged.

In 2 amp trickle charging mode, the needle will point at the left side of the smaller red triangle in the green area when fully charged.

Some Problems When Reading a Battery Charger Amp Meter

read-a-manual-battery-charger

Reading a battery charger amp meter can be useful for monitoring the charging process. However, you might also experience problems when you read a manual battery charger or even an automatic one. Here are the two most common issues and their possible reasons.

1. Unstable Charger Needle

  • Poor connection or improperly connected cables
  • A dead or defective battery

2. Not Moving Charger Needle

  • Defective amp meter
  • Completely flat charge battery
  • Unclean battery terminals
  • The needle stuck due to its age/Sticking needle due to its old battery charger

3. Faulty AC circuit

FAQS

read-a-car-battery-charger

What Does the Amp Reading on a Battery Charger Mean?

The amp meter on a battery charger means the amount of current flowing through the charger. It also indicates every important detail to consider for safe battery charging.

Should I Charge My Battery with 2 or 10 Amps?

Charging a battery in any battery charger such as SE 82-6, at different ratings mainly depends on the battery needs as it has different benefits.

In general, charging a battery at 2 amps is considered slow but safe and may extend its lifespan. At the same time, charging a battery at 10 amps is considered fast charging but has a higher risk that can reduce the battery lifespan.

How to Read a Schumacher Battery Charger?

Reading a Schumacher charger is the same as the instructions above. However, as you read Schumacher battery charger meter, you may notice that some of their models do not use a color-coded bar. However, they also use a small triangle for 2 amps trickle charging mode.

How to Use a Battery Charger?

Usually, you will need to connect the charger to the battery terminals properly and set the charger based on your preferred setting before plugging the charger into the acAC outlet.

However, to ensure that you do it properly, it is advisable to see its manufacturer’s manual, such as Schauer 6 amp battery charger instructions, Diehard battery charger manual 71222, and other brands you have, before using the charger.

Conclusion

Knowing how to read a battery charger amp meter is essential for everyone, especially those who charge batteries regularly. By understanding all the symbols at the charger gauge, you can ensure the battery is charged safely and efficiently.

Always follow the manufacturer’s manual and precautions when utilizing a battery charger. This way, you can avoid the potential damage and safety hazards that are caused by overcharging and undercharging.
