A superb sound system depends not only on loud sounds but also on having quality sounds pleasing to the ear. By learning how to tune an amp with a multimeter, anyone can adjust their sound system at home with ease.
That is true! You can set and play high-quality music with your sound system by measuring the resistance, voltage, and watts and calculating the amplifier’s gain. The detailed guide below will help you get the process done correctly.
Table of Contents
- Step-by-Step to Tune an Amp with a Multimeter
- What to Prepare
- Step 1. Measure the Speaker Resistance
- Step 2. Prepare the Amplifiers Manual and Your Calculator
- Step 3. Unplug All the Accessories of the Amplifier
- Step 4. Set the Volume to 75% and Play the Test Tone
- Step 5. Connect the Multimeter
- Step 6. Setting Gain with DMM (Digital MultiMeter)
- Step 7. Test Your Amp Setup
Step-by-Step to Tune an Amp with a Multimeter
A multimeter amp setting is a complicated task that may not apply to everyone. However, you can have it done efficiently with the right tools and the comprehensive guide below, including the knowledge of using a digital multimeter.
What to Prepare
- Multimeter (Preferably a digital one)
- Amplifiers manual for wattage output reference
- Test tone
- Small flat screw to tune a sub amp
- Speaker for testing
Step 1. Measure the Speaker Resistance
To tune a monoblock amp or any other amp type, you can start by measuring the speaker’s resistance.
However, you first need to disconnect the speaker’s power supply so that the readings will not be affected by other components, thereby becoming more accurate.
Now, using your multimeter, set it to the Ohm settings – you will notice an OLΩ symbol on the display screen. Then connect the red probe to the positive port (the Omega port with a VΩ symbol) of the speaker and the black one to the negative (the common) port.
For speakers’ maximum resistance, reading tends to range between 2Ω and 8Ω, with 2, 4, 8, and 16 Ohms being the most common.
Step 2. Prepare the Amplifiers Manual and Your Calculator
Using the amplifier’s manual, find the recommended wattage and note it down. Using this manual recommended wattage and the speaker resistance you recorded earlier, you can now calculate your target voltage.
You can use Ohm’s law in your calculation which has a formula of V= √(P*R), which means V for target voltage, P is for wattage, and R for resistance. In simple words, you may get the AC voltage of the amps by getting the square root of wattage multiplied by Resistance.
For example, you have a 75 watts amplifier for a 4 ohm load. In this case, 75 watts multiplied by 4 ohms is 300. Then you get its square root which is 17.32v target voltage.
However, if you need to tune a 4 channel amp where you need two gain controls, you need to calculate each gain control separately using the same formula.
Step 3. Unplug All the Accessories of the Amplifier
When setting amp gain, it is good to disconnect all the amp accessories. These accessories include speakers, subwoofers, or any other components connected to the unit. Your amplifier should be the only one connected to the power source.
However, you need to note where each terminal is currently connected to make it easy for you to re-assemble. Take a picture beforehand if you’re not confident you can remember all the correct wirings.
Furthermore, set all the settings, volume, and gain to zero to prevent any issues and to accurately adjust an amp gain.
Step 4. Set the Volume to 75% and Play the Test Tone
To set the gain, you need to adjust the volume level to 75%. This volume level is needed to prevent the amps from making a distorted sound. Never play anything louder than this 75% threshold.
Then, play the test tone without any connected speaker to the amp. Also, note that the sound rating must be up to 60Hz to tune subwoofer amp. As for mid-range and high-range amps, aim for 100Hz and 1000 Hz respectively.
On the other hand, if you have keen ears, you can set amp gain by ear. All you need to do is to connect your speaker, play some music, and gradually increase the volume until you hear a distortion.

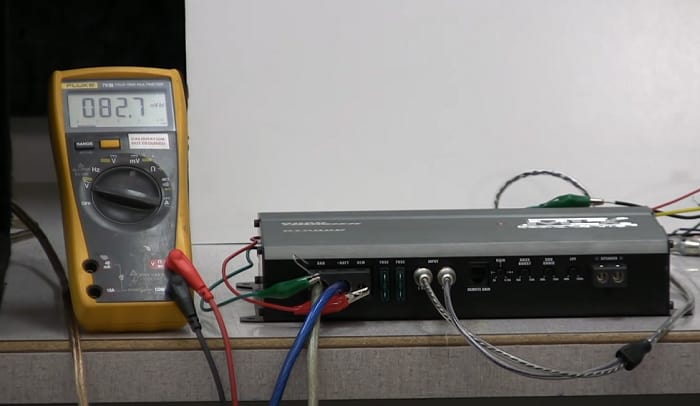

Step 5. Connect the Multimeter

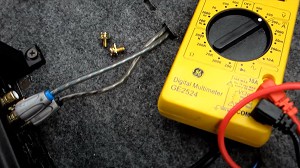

To start matching amp gain to the head unit you need to set first the multimeter to AC volt reading. Then you can connect the probes to each output terminal of the speaker. Connect the black lead to the negative speaker terminal and the red to the positive one.
This way, you can get the actual AC voltage of the amps. However, if you get 7v and above reading on your first try, you might need to reset all the settings, volume, and gain back to zero and try rereading it.
Step 6. Setting Gain with DMM (Digital MultiMeter)

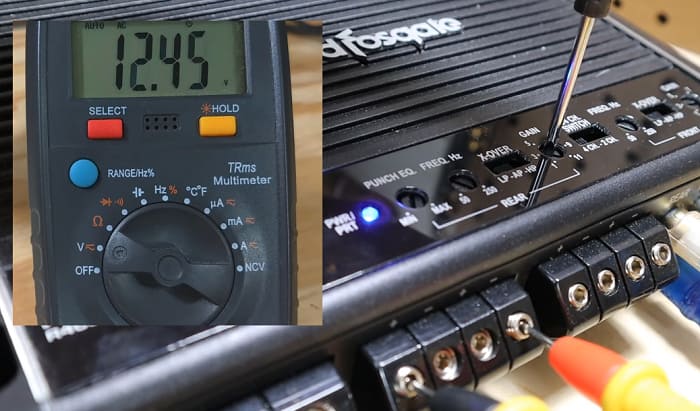

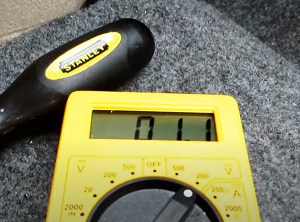

To set the gain, find the adjusting gain knob and slowly turn it using a small flat screw. While adjusting the knob, watch the multimeter reading and stop when it reaches your calculated AC output voltage. Once you set the AC voltage properly, your amp is ready to go.
However, to set gain on a 4-channel amp you need to repeat the process of adjusting the gain for each amp channel.
Step 7. Test Your Amp Setup
Now it is time to test your sound system in real music. You can now connect all the amps accessories to their original setup and play your favorite music.
If you detect distortion sound, there might be something wrong with your gain setting, and you might need to repeat all the steps above.
In addition, you may need to set LPF with multimeter to delocolize the filter. Similarly, adjusting the HPF can also help you achieve a smoother sound quality.
However, if everything is alright, you can now enjoy your best music anytime.
- Note: There are other methods using other devices, such as an Oscilloscope and bass knob remote, to set gain on the subwoofer amp.
How to Tell if Amp Gain is too High
Usually, when the set amplifier gain is too high, even if the volume level is lower, it can easily reach the amplifier’s maximum power. In this case, the music becomes distorted before it passes the gain level.
To prevent further problems, you should properly tune an amp gain to avoid damage to your speakers. You might need to start at minimum settings and slowly power up the system while slowly adjusting the volume until it reaches the maximum level.
How Do You Test an Amp to See if it Works?
You can plug the amp unit into your wall outlet to see if it works perfectly. However, if it does not work, you can look for visible signs of damage, such as broken or loose wire connections and water damage in the form of moisture.
If you see these signs, it is better to call a professional electrician to repair them to handle the electrical problem and check other issues appropriately.
Why Does My Amp Go into Protection Mode When I Turn It On?
Sudden activation of the protection mode of an amp unit is primarily due to overheating. This feature of the amplifiers is significantly helpful in preventing more extensive damage to the unit.
Usually, the best way to fix this issue is by providing the unit with proper ventilation or lessening the connected speakers.
- 3 Easy Steps to Test a Circuit Breaker with a Digital Multimeter
- Detailed Steps to Test a GFCI Breaker with a Multimeter
Knowing how to tune an amp with a multimeter is highly advantageous and effective in producing the most excellent sound. Furthermore, this process can be quick if you have enough knowledge of digital multimeters.
However, if you are having trouble changing the gain setting to tune car amp, seeing an expert is a smart option, as incorrectly increasing the gain might damage the sound quality and unit. For instance, too-high amp gain may result in overheating the speaker.
We hope that this guide is helpful. Don’t be afraid to reach out to us if you have any questions.
